Introduction to Pool Safety Diagrams & Illustrations
Our pool safety diagrams turn Queensland’s pool barrier rules into clear, at-a-glance visuals. Each illustration covers a common compliance point, including the 1200mm minimum barrier height, the 100mm maximum gap at ground level, the 900mm non-climbable zone, and correct gate and latch requirements.
Created by a licensed Gold Coast pool safety inspector, these diagrams help homeowners, landlords, property managers, and builders identify problems early and avoid a failed inspection.

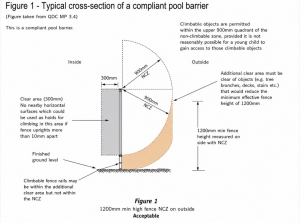

- Measuring the Minimum 1200mm Pool Barrier Height
- 1200mm Pool Barrier and the Non-Climbable Zone

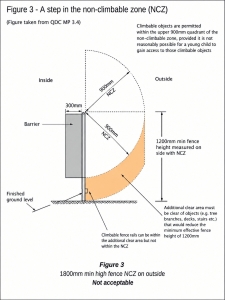

- Climbable Objects Near a 1200mm Pool Barrier

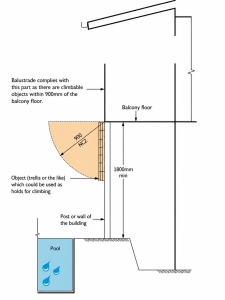

- Ground Levels and 1200mm Pool Barrier Height

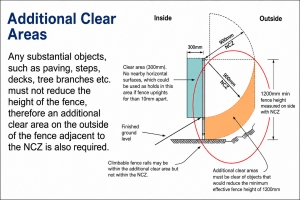

- Clear Area Inside a 1200mm Pool Barrier
- Maintaining the Effective 1200mm Barrier Height
- Non-Compliant 1200mm Pool Barrier Example
- Non-Compliant Pool Barrier and Climbing Hazard
