Climbable Objects Near a 1200mm Pool Barrier

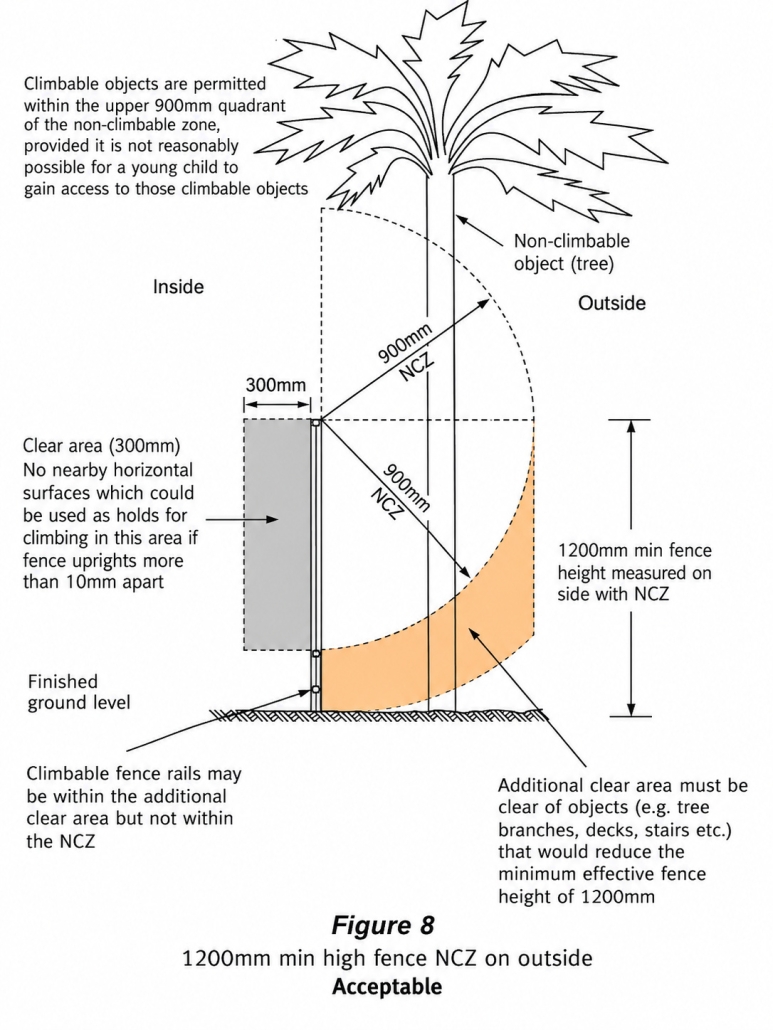

Pool safety diagram showing climbable objects and required clear zones around a 1200mm pool barrier.

A compliant pool barrier can become unsafe when climbable objects are positioned too close to it.

Outdoor furniture, pot plants, trees, garden features, taps, equipment and other objects may provide a child with a foothold or climbing point.

For barriers under 1800mm, particular attention must be given to maintaining the 900mm non-climbable zone outside the barrier and the associated clear area on the pool side.

This illustration shows why the space surrounding a pool barrier is just as important as the barrier itself.

Pool safety diagram showing climbable objects and required clear zones around a 1200mm pool barrier.
